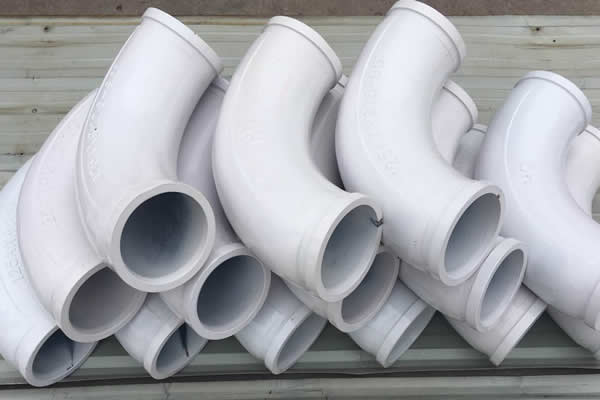

Jiuzhou Concrete pump pipe Manufacturing is a Professional factory of concrete pump elbows , we have the Normal concrete pump elbow, Heavy concrete pump elbow, and Twin wall concrete pump elbow, all can be used for concrete pump car and Stationary pump.
| Name |
Specification |
Material |
Weight |
Working press |
Life time |
| Normal elbow |
R275*90DE |
Cast steel |
16kg |
160bar |
25.000CBM |
| R275*45DE |
Cast steel |
9kg |
160bar |
25.000CBM |
| R275*30DE |
Cast steel |
8kg |
160bar |
25.000CBM |
| Heavy elbow |
R275*90DE |
Cast steel |
18kg |
180bar |
35.000CBM |
| Twin wall elbow |
R275*90DE |
Wear material |
17kg |
180bar |
60.000CBM |
| R275*45DE |
Wear material |
9.5kg |
180bar |
60.000CBM |
| R275*30DE |
Wear material |
8.5kg |
180bar |
60.000CBM |
| Big diameter elbow |
R1000*90DE |
ST52 |
23kg |
150bar |
20.000CBM |
| R750*90DE |
ST52 |
17kg |
150bar |
20.000CBM |
| R500*90DE |
ST52 |
12kg |
150bar |
20.000CBM |
Application:
1.Concrete pump car/Concrete pump truck.
2.Concrete stationary pump/Mounted pump
3.Concrete placing boom.
