Twin Wall Elbow
Jiuzhou Concrete pump pipe Manufacturing is a Professional factory of Twin wall elbow, we have the Normal concrete pump elbow, Heavy concrete pump elbow, and Twin wall concrete pump elbow, all can be used for concrete pump car and Stationary pump.
Twin wall elbow
Jiuzhou Concrete pump pipe Manufacturing is a Professional factory of Twin wall elbow, we have the Normal concrete pump elbow, Heavy concrete pump elbow, and Twin wall concrete pump elbow, all can be used for concrete pump car and Stationary pump.
Name
|
Specification |
Material |
Weight |
Working press |
Life time |
| Normal elbow |
R275*90DE |
Cast steel |
16kg |
160bar |
25.000CBM |
| R275*45DE |
Cast steel |
9kg |
160bar |
25.000CBM |
| R275*30DE |
Cast steel |
8kg |
160bar |
25.000CBM |
| Heavy elbow |
R275*90DE |
Cast steel |
18kg |
180bar |
35.000CBM |

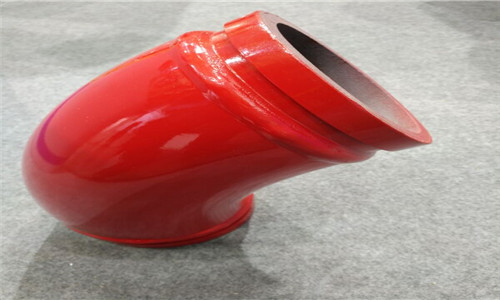

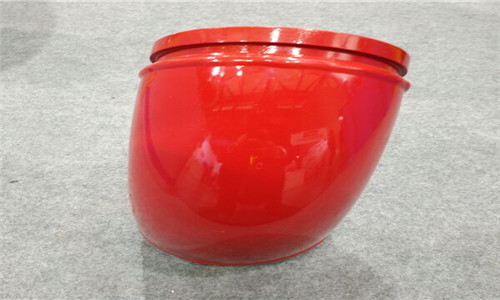

| Twin wall elbow |
R275*90DE |
Wear material |
17kg |
180bar |
60.000CBM |
| R275*45DE |
Wear material |
9.5kg |
180bar |
60.000CBM |
| R275*30DE |
Wear material |
8.5kg |
180bar |
60.000CBM |
| Big diameter elbow |
R1000*90DE |
ST52 |
23kg |
150bar |
20.000CBM |
| R750*90DE |
ST52 |
17kg |
150bar |
20.000CBM |
| R500*90DE |
ST52 |
12kg |
150bar |
20.000CBM |
Application:

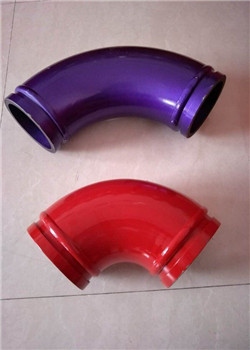

Twin wall elbow is the best concrete pump elbow, our company have two different kinds of twin wall elbows for your choice: The normal twin wall elbow and the casting twin wall elbow.
The Twin wall elbow mostly used in concrete pump car, for the boom and the deck both.

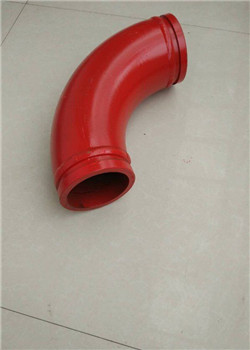

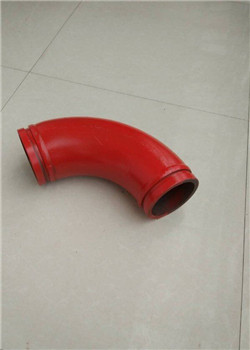

Normal twin wall elbow
| Elbow |
Double Wall Elbow |
| Inner pipe |
9mm |
| Wall Thickness |
3.5mm |
| Weld Ends |
SK, ZX , MF |
Casting twin wall elbow
| Elbow |
Double Wall Elbow |
| Inner pipe |
6.5-12mm |
| Wall Thickness |
3.5mm |
| Weld Ends |
SK, ZX , MF |
