Concrete Pump Elbow

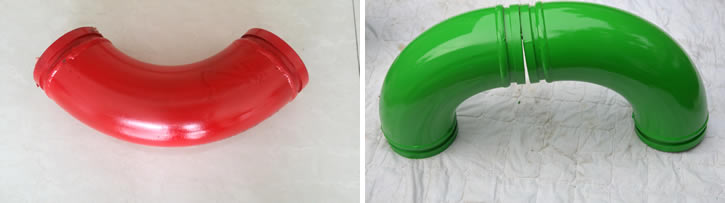

Jiuzhou Concrete pump pipe Manufacturing is a Professional factory of concrete pump elbows , we have the Normal concrete pump elbow, Heavy concrete pump elbow, and Twin wall concrete pump elbow, all can be used for concrete pump car and Stationary pump.
Concrete pump elbow
Jiuzhou Concrete pump pipe Manufacturing is a Professional factory of concrete pump elbows , we have the Normal concrete pump elbow, Heavy concrete pump elbow, and Twin wall concrete pump elbow, all can be used for concrete pump car and Stationary pump.
| Name |
Specification |
Material |
Weight |
Working press |
Life time |
| Normal elbow |
R275*90DE |
Cast steel |
16kg |
160bar |
25.000CBM |
| R275*45DE |
Cast steel |
9kg |
160bar |
25.000CBM |
| R275*30DE |
Cast steel |
8kg |
160bar |
25.000CBM |
| Heavy elbow |
R275*90DE |
Cast steel |
18kg |
180bar |
35.000CBM |
| Twin wall elbow |
R275*90DE |
Wear material |
17kg |
180bar |
60.000CBM |
| R275*45DE |
Wear material |
9.5kg |
180bar |
60.000CBM |
| R275*30DE |
Wear material |
8.5kg |
180bar |
60.000CBM |
| Big diameter elbow |
R1000*90DE |
ST52 |
23kg |
150bar |
20.000CBM |
| R750*90DE |
ST52 |
17kg |
150bar |
20.000CBM |
| R500*90DE |
ST52 |
12kg |
150bar |
20.000CBM |
Application:
1.Concrete pump car/Concrete pump truck.
2.Concrete stationary pump/Mounted pump
3.Concrete placing boom.
