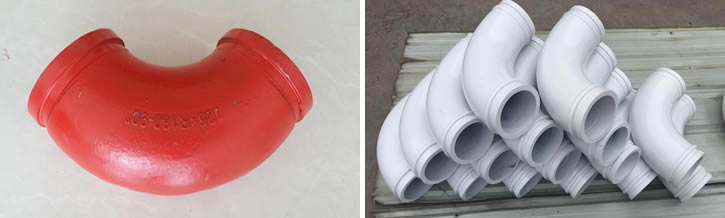

90 Degree Elbow

Jiuzhou Concrete pump pipe Manufacturing is a Professional factory of concrete pump elbows , we have the Normal concrete pump elbow, Heavy concrete pump elbow, and Twin wall concrete pump elbow, all can be used for concrete pump car and Stationary pump.
  • /images/up_images/20161081114.jpg

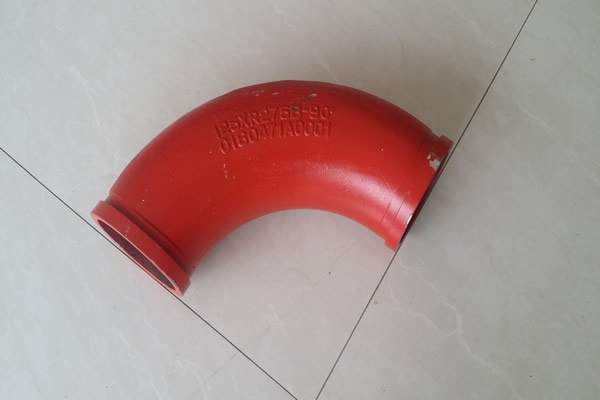

  • /images/up_images/20161081116.jpg

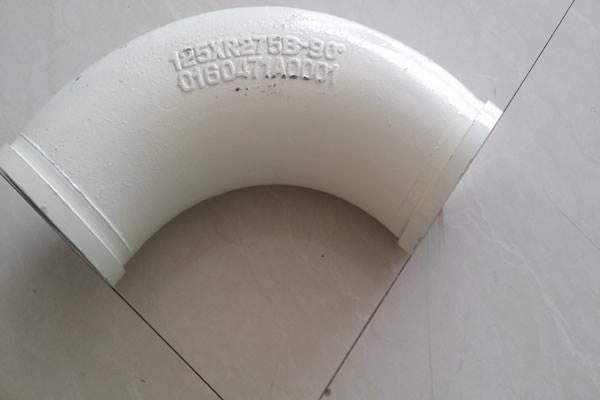

  • /images/up_images/20161081119.jpg

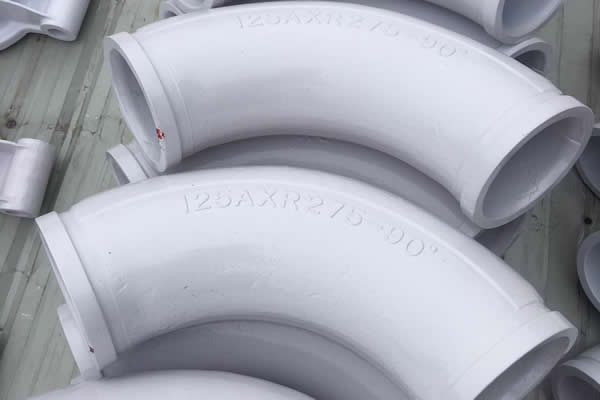

  • /images/up_images/201610811111.jpg

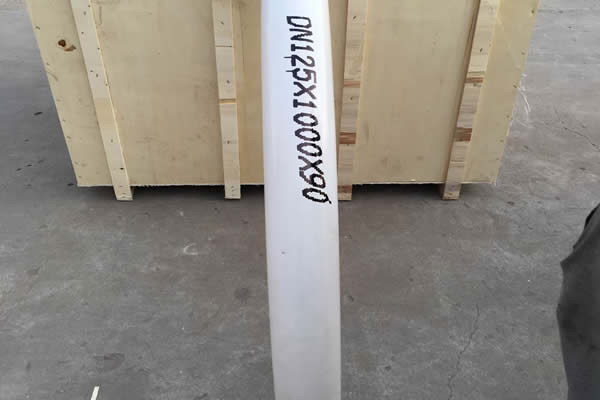

  • /images/up_images/201610811113.jpg
90 degree elbow

Jiuzhou Concrete pump pipe Manufacturing is a Professional factory of concrete pump elbows , we have the Normal concrete pump elbow, Heavy concrete pump elbow, and Twin wall concrete pump elbow, all can be used for concrete pump car and Stationary pump.

Name Specification Material Weight Working press Life time
Normal elbow R275*90DE Cast steel 16kg 160bar 25.000CBM
R275*45DE Cast steel 9kg 160bar 25.000CBM
R275*30DE Cast steel 8kg 160bar 25.000CBM
Heavy elbow R275*90DE Cast steel 18kg 180bar 35.000CBM
Twin wall  elbow R275*90DE Wear material 17kg 180bar 60.000CBM
R275*45DE Wear material 9.5kg 180bar 60.000CBM
R275*30DE Wear material 8.5kg 180bar 60.000CBM
Big diameter elbow R1000*90DE ST52 23kg 150bar 20.000CBM
R750*90DE ST52 17kg 150bar 20.000CBM
R500*90DE ST52 12kg 150bar 20.000CBM



Application:
1.Concrete pump car/Concrete pump truck.
2.Concrete stationary pump/Mounted pump
3.Concrete placing boom.
