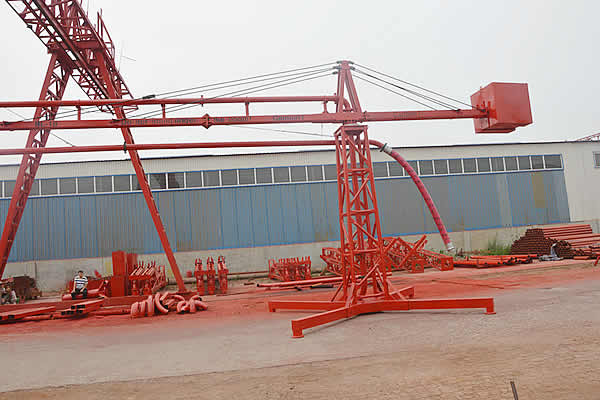

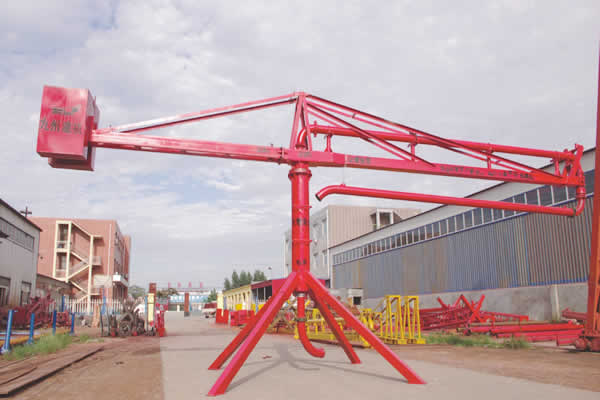

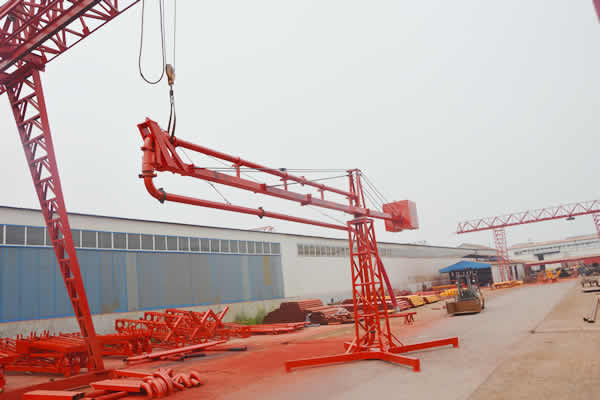

Concrete Placing Boom

The Concrete Placing Boom series is the assistant equipment of concrete delivery pump.

The Concrete Placing Boom series is the assistant equipment of concrete delivery pump. Connected with concrete pump by standard delivery pipes, concrete placing boom can solve the problem of placing and distributing concrete in sites efficiently. It also plays an important role in reducing the labor intensity and raising the efficiency.

It includes Manual Concrete Placing Boom 10m, 12m, 15m, 18m, Electric Concrete Placing Boom 10m, 12m, 15m, 18m and Hydraulic Concrete Placing Boom 12m, 15m, 17m, 21m, 24m, 28m etc.

Manual Placing Boom

Data Model	HGS-10	HGS-12	HGS-15	HGS-18
Reach, m	10	12	15	18
Area, ㎡	260	450	600	1000
Height, m	4	4	4.5	5
Pipeline Dia., m	133*4.5	133*4.5	133*4.5	133*4.5
Overall Weight, kg	900	1000	1200	1500
Arm A Rotation, °	360	360	360	360
Arm B Rotation, °	350	350	350	350
Operating Weight, kg	500	650	800	1000

Electric Placing Boom

Data Model	HGS-10	HGS-12	HGS-15	HGS-18
Reach, m	10	12	15	18
Area, ㎡	260	450	600	1000
Height, m	4	4	4.5	5
Pipeline Dia., m	133*4.5	133*4.5	133*4.5	133*4.5
Overall Weight, kg	900	1000	1200	1500
Arm A Rotation, °	360	360	360	360
Arm B Rotation, °	350	350	350	350
Operating Weight, kg	500	650	800	1000

Hydraulic Placing Boom

Model Data	HGY-12	HGY-15	HGY-18	HGY-21	HGY-24
Reach, m	12	15	18	21	24
Area, ㎡	450	700	1000	1350	1750
Height, m	8	10	11	12	12
Pipeline Dia., m	133*4.5	133*4.5	133*4.5	133*4.5	133*4.5
Overall Weight, kg	4000	5000	7000	8000	9000
Rotation Angel, °	400	400	400	400	400
Angel of Elevation, °	0-60	0.60	0-70	0-70	0-70
Operating Weight, kg	1500	2000	2500	3000	4000
Rotation Speed, r/min	0.1-0.8	0.1-0.8	0.1-0.8	0.1-0.8	0.1-0.8
