28m concrete placing boom

Concrete placing boom is end equipment for pumping concrete, which is used for pouring concrete pumped by pipe into the template of construction Components.

28m concrete placing boom

Concrete placing boom is end equipment for pumping concrete, which is used for pouring concrete pumped by pipe into the template of construction

Components.

28m concrete placing boom includes climbing and stationary.

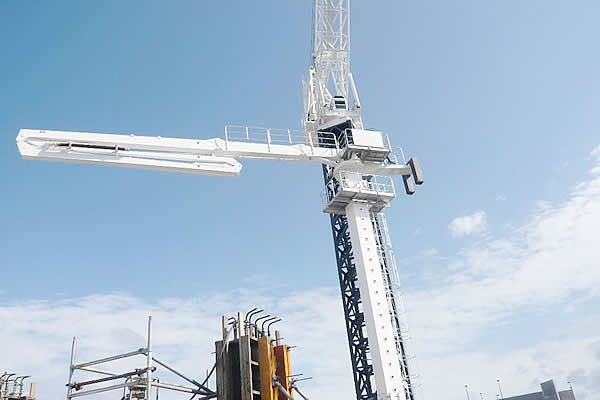

28m climbing hydraulic concrete placing boom	Unit	Spec.
Placing Radius max.	m	28
Rotation Scope	°	0-360
Height	m	13.3
Jacking Height per time	m	＜3.6
Hydraulic System Pressure	Mpa	24
Concrete Delivery Pipe Inner Diameter	mm	Φ125
Power	Kw	7.5

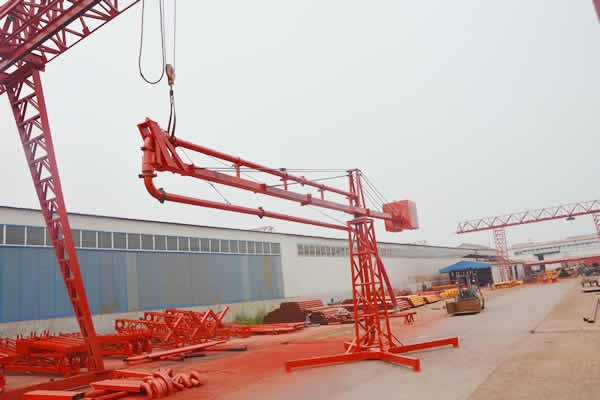

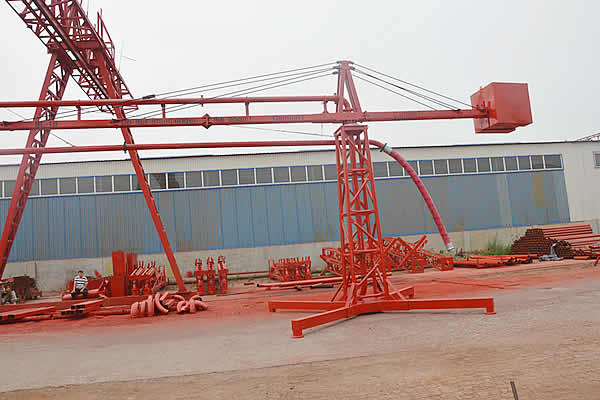

28m stationary hydraulic concrete placing boom	Unit	Spec.
Placing Radius max.	m	28
Rotation Scope	°	0-360
Mast Section Dimension	m	1.21.23
Hydraulic System Pressure	Mpa	24
Concrete Delivery Pipe Inner Diameter	mm	Φ125
Power	Kw	7.5
