Electric Concrete Placing Boom

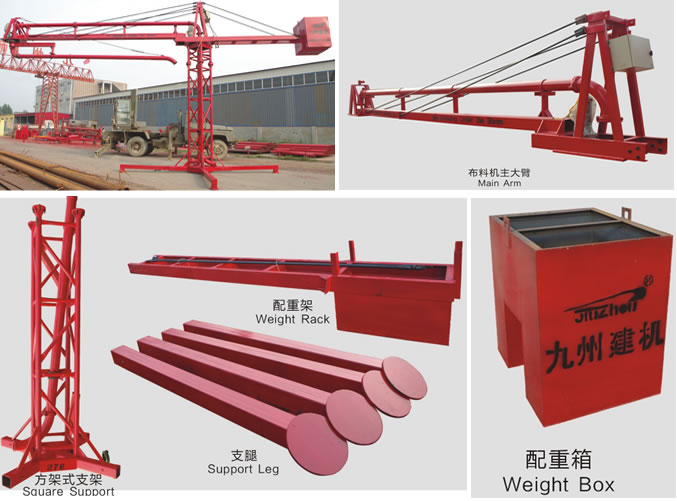

The Electric Concrete Placing Boom includes supporting steel pipes, pipe supports, pull bars, a beam.etc.Installed on the slewing supporting holder, the main beam frame can rotate 360°.
Installed on the slewing supporting holder, the main beam frame can rotate 360°. Pipe supports on the front beam are used to fix and support delivery pipelines. The balancing frame on the rear beam is installed to achieve the balance.
The Electric Concrete Placing Boom series is structurally stable and reliable, operationally portable and flexible.
| Model |
HGD-12 |
HGD-15 |
HGD-18 |
| Reach, m |
12 |
15 |
18 |
| Area, ㎡ |
500 |
750 |
1050 |
| Height, m |
4.5 |
5 |
5 |
| Pipeline Dia., m |
133*4.5 |
133*4.5 |
133*4.5 |
| Overall Weight, kg |
1200 |
1400 |
1600 |
| Arm A Rotation, ° |
360 |
360 |
360 |
| Arm B Rotation, ° |
350 |
350 |
350 |
| Operating Weight, kg |
700 |
850 |
1050 |
| Rotation Speed, r/min |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
1. It can be placed in suitable places required without being fixed
2. It features compact structure ,light weight and can be lifted as a whole by a crane
3. With excellent maneuverability,it can meet the requirements for concrete placement on different jobsite,and is ideal for concrete pumping and placing.
4. Easy operation,reliable safety and economical purchase.
5. It can be drived by people and are flexibility
