Concrete pumping pipe

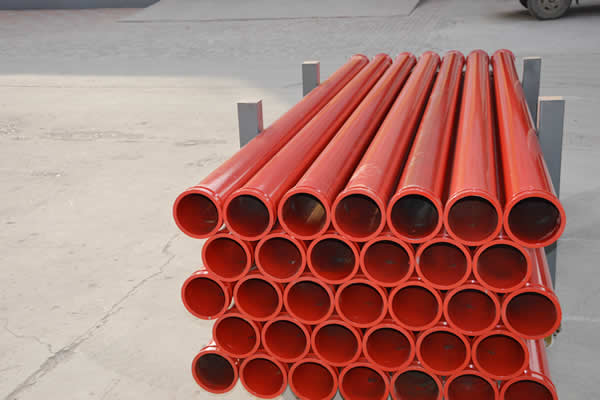

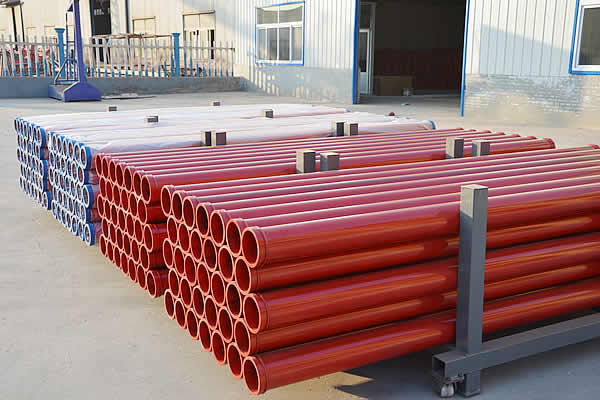

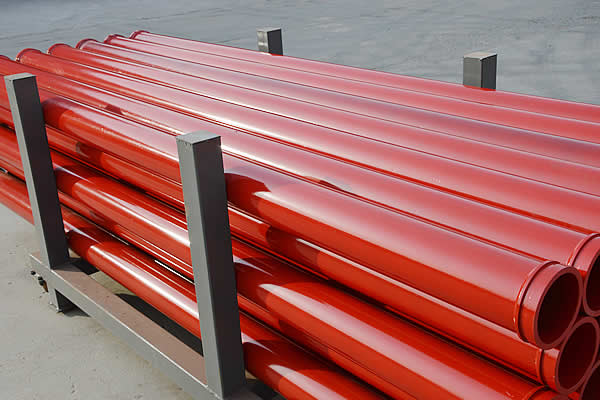

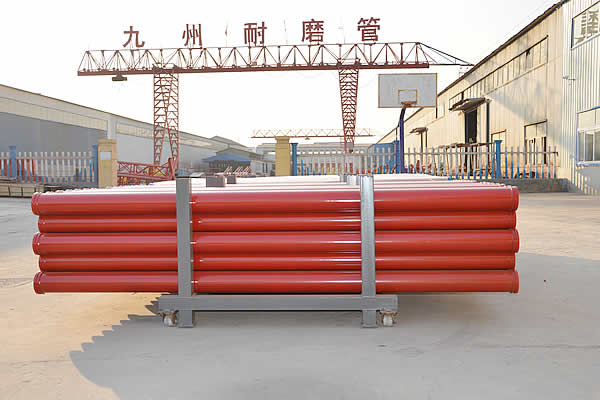

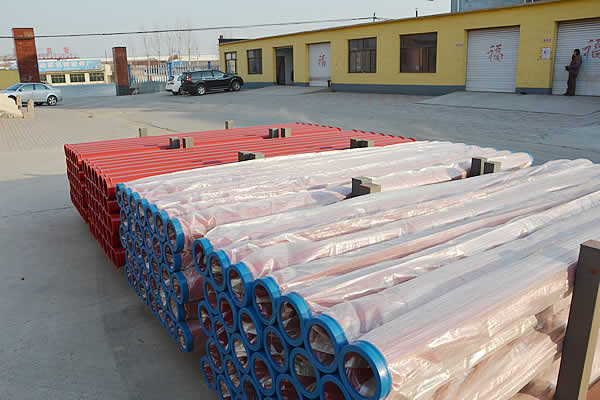

Concrete pumping pipe
  • /images/up_images/2016120191927.jpg
  • /images/up_images/2016120191929.jpg
  • /images/up_images/2016120191925.jpg
  • /images/up_images/2016120191933.jpg
  • /images/up_images/2016120191936.jpg
  • /images/up_images/2016120191944.jpg
Jiuzhou Pump Pipe Manufacturing is specialized in concrete pump pipeline.

We provides Concrete Pump Pipe for brands such as: Sany , Zoomlion ,Schwing ,CIFA, PM, etc.

Our main products are : ST52 Concrete pump pipe, Hardened concrete pump pipe and Twin wall concrete pump.
1..Specification of Concrete pump delivery tube
Material : Welded pipes, Seamless pipes, ST52 pipes , Harden pipes and Twin wall pipes
Wall Thickness: 2mm to 10mm or more
Length: 1m, 2m, 3m  other lengths upon customer request.
Working Capacity: 6000-150000cbm
Application: Used for the concrete boom pump and stationary pump.



2.Developing of concrete pump pipes.
After almost 20 years of development, our company have many different pipes.As the following

Name Structure Weight Thickness Life time Working Press
G1 Sing Wall Pipe Single Layer 45kg 4.5mm 6000-8000 85bar
G2 Sing Wall Pipe Single Layer 45kg 4.5mm 10000-12000 99bar
G3 Sing Wall Pipe Single Layer 45kg 4.5mm 15000-18000 140bar
G4 Sing Wall Wear-resisting Pipe Single Layer 48kg 4.8mm 20000-25000 110bar
G5 Sing Wall Wear-resisting Pipe Single Layer 48kg 4.8mm 25000-35000 110bar
G6 NM550 Twin Wall Wear-resisting Pipe Double Layer 48kg 4.8mm 50000-60000 65bar
G7 NM550-1 Twin Wall Wear-resisting Pipe Double Layer 48kg 4.8mm 60000-80000 60bar
G8 NM600 Twin Wall Wear-resisting Pipe Double Layer 48kg 4.8mm 80000-100000 40bar
G9 NM600-1 Twin Wall Wear-resisting Pipe Double Layer 68kg 7mm 120000-150000 80bar

We all believe all the customer can find the suitable pipes for their pump.

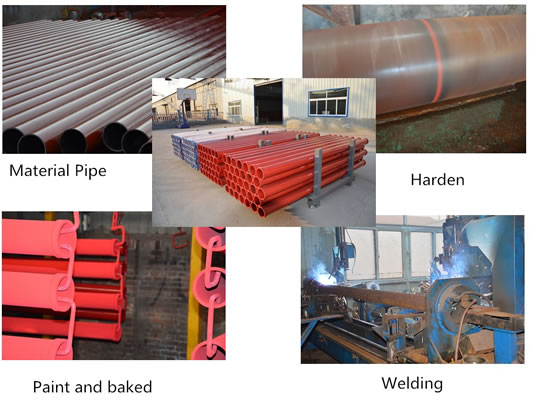

3.Production of process.
All our pipes have been made by the complicated process.



4.Contact us.
Tel: +86-311-89259709
