Concrete Pump Pipeline

jiuzhou Pump Pipe Manufacturing is specialized in concrete pump pipeline

jiuzhou Pump Pipe Manufacturing is specialized in concrete pump pipeline.

We provides Concrete Pump Pipe for brands such as: Sany , Zoomlion ,Schwing ,CIFA, PM, etc.

Our main products are : ST52 Concrete pump pipe, Hardened concrete pump pipe and Twin wall concrete pump.

1..Specification of Concrete pump delivery tube

Material : Welded pipes, Seamless pipes, ST52 pipes , Harden pipes and Twin wall pipes

Wall Thickness: 2mm to 10mm or more

Length: 1m, 2m, 3m other lengths upon customer request.

Working Capacity: 6000-150000cbm

Application: Used for the concrete boom pump and stationary pump.

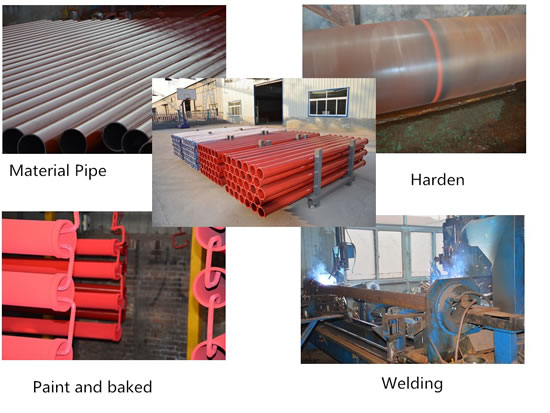

2.Developing of concrete pump pipes.

After almost 20 years of development, our company have many different pipes.As the following

Name	Structure	Weight	Thickness	Life time	Working Press
G1 Sing Wall Pipe	Single Layer	45kg	4.5mm	6000-8000	85bar
G2 Sing Wall Pipe	Single Layer	45kg	4.5mm	10000-12000	99bar
G3 Sing Wall Pipe	Single Layer	45kg	4.5mm	15000-18000	140bar
G4 Sing Wall Wear-resisting Pipe	Single Layer	48kg	4.8mm	20000-25000	110bar
G5 Sing Wall Wear-resisting Pipe	Single Layer	48kg	4.8mm	25000-35000	110bar
G6 NM550 Twin Wall Wear-resisting Pipe	Double Layer	48kg	4.8mm	50000-60000	65bar
G7 NM550-1 Twin Wall Wear-resisting Pipe	Double Layer	48kg	4.8mm	60000-80000	60bar
G8 NM600 Twin Wall Wear-resisting Pipe	Double Layer	48kg	4.8mm	80000-100000	40bar
G9 NM600-1 Twin Wall Wear-resisting Pipe	Double Layer	68kg	7mm	120000-150000	80bar
