1.Concrete Pump Hose Features: Specially developed premium hose for conveying concrete using concrete pumps. Suitable for conveying highly abrasive media such as concrete, cement and plaster. Long service life due to abrasion resistant tube. Flexible and easy to handle, with good kink resistance due to a special hose design. Suitable for reverse pumping, for easy cleaning.

2.Concrete Pump Hose Size: 1m-10m, 2inch-6inch

3. Concrete Pump Hose Temperature Range: -35°C / +80°C

4. Concrete Pump Hose Safety factor 2:1

5. Concrete Pump Hose Tube: NR/SBR/BR, black, smooth, antistatic, abrasion resistant

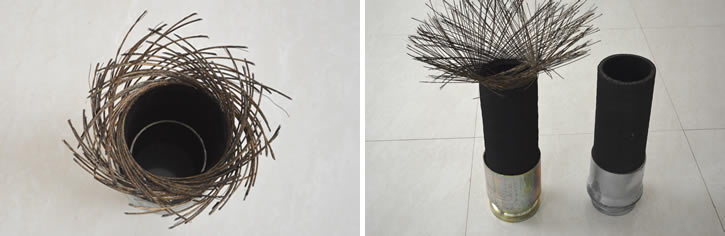

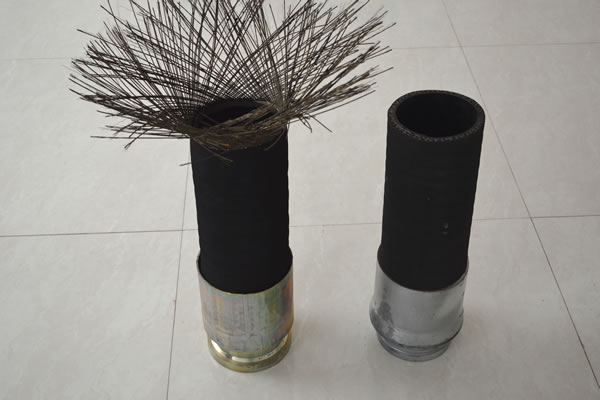

6. Concrete Pump Hose Reinforcement: Steel cord wrapped

7. Concrete Pump Hose Cover: SBR, black, antistatic, cloth impression

ID (mm)		OD (mm)	Working Pressure (bar)	Burst Pressure (bar)	Bend Radius (mm)	Weight (Kg/m)
in.	mm.
2	51	68±1.5	85	200	200	2.8
2.5	64	85±1.5	85	200	250	4.0
3	76	102±1.5	85	200	270	6.0
3.5	89	116±1.5	85	200	290	7.5
4	102	130±1.75	85	200	300	9.2
4.5	115	143±2	85	200	320	10.5
5	127	158±2	85	200	360	11.7
6	152	186±2	85	200	570	17.0
